Hardware Product Engineering Design Services From Concept to Manufacturing

A hardware product rarely moves directly from a concept sketch to a production line. Between those two points are a series of engineering decisions that determine whether the product will perform as intended, whether its components can be assembled efficiently, whether the selected manufacturing process is appropriate, and whether the design can be produced consistently at the required volume. A CAD model is an important part of that process, but it is only one part. A product can have a complete 3D model and still have problems with material selection, tolerances, assembly access, manufacturability, structural performance, or production economics. Those problems become progressively more expensive to address as development moves from concept to prototype, tooling and production. In practice, many manufacturing problems are not caused by a single major design error. They often come from small decisions made early in development—an inaccessible fastener, an unnecessarily tight tolerance, an unsuitable datum, a difficult-to-machine feature, or geometry that complicates tooling. This is where hardware product engineering becomes important. Rather than treating CAD, prototyping, DFM, validation and manufacturing support as disconnected activities, product engineering brings them together around the requirements of the finished product. The objective is not simply to create geometry that works in CAD. It is to develop a product whose design, materials, tolerances, assembly method and manufacturing process work together under real production conditions. Almost 70% of manufacturing costs are determined during the design phase and yet, most product teams only begin thinking about manufacturing after the design is finalized. This is a profound problem in product development.

1. Why Product Engineering Decisions Matter Before Manufacturing

Product Engineering at a Glance

The objective is not simply to create geometry that works in CAD. It is to develop a product whose design, materials, tolerances, assembly method and manufacturing process work together under real production conditions.

Requirements

Architecture

Mechanical Design

Prototype

Validation

DFM

Production

Product engineering connects early design decisions with the realities of manufacturing, assembly, validation and production.

Many of the decisions that influence downstream manufacturing problems are made before a product reaches production. Understanding those relationships early can help prevent expensive changes later.

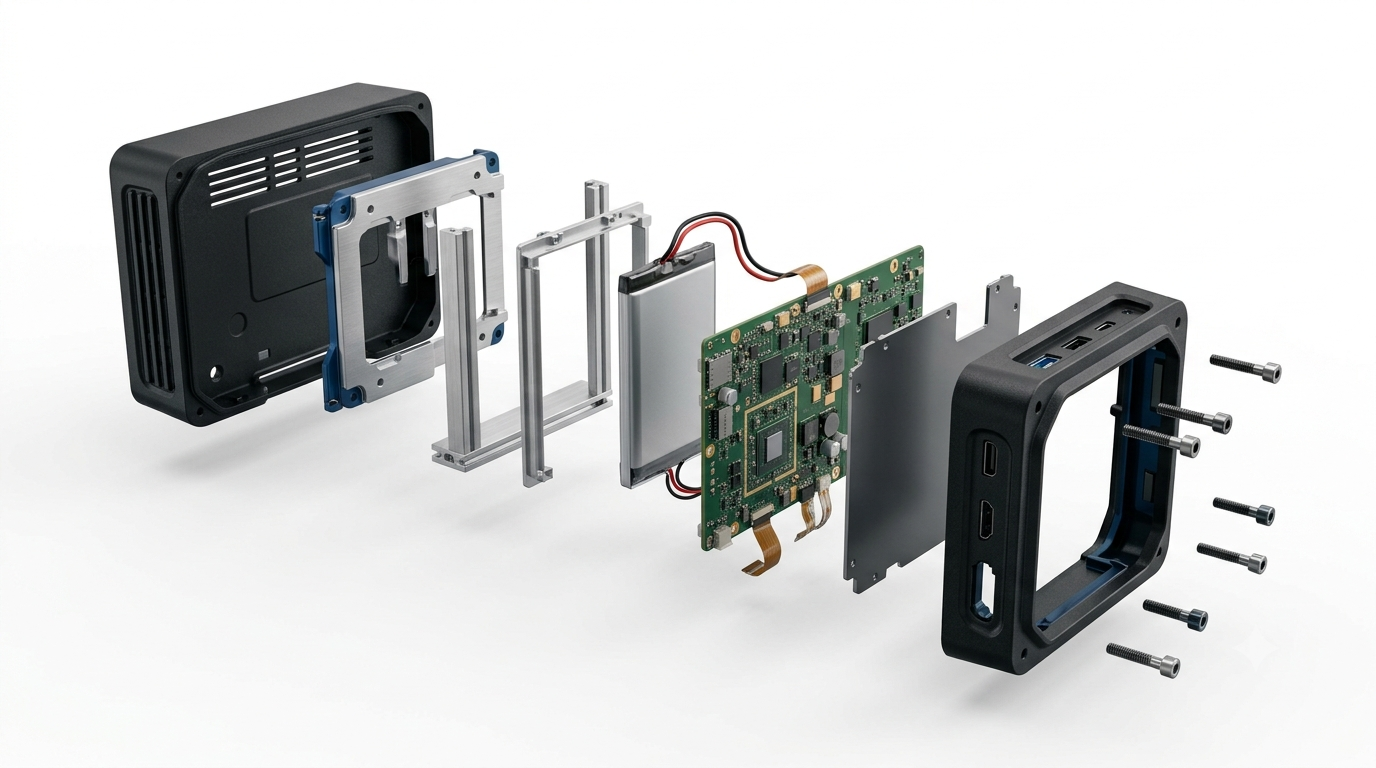

2. Define the Product Architecture Before Detailed CAD

What Needs to Be Defined Early

· Product dimensions and packaging constraints · Electronics and component interfaces · Material requirements · Environmental conditions · Expected production volume · Market-specific compliance requirements · Manufacturing processes · Assembly requirements · Serviceability · Performance and testing requirements

Engineering Scenario: Compact Industrial Monitoring Device

Consider a compact industrial monitoring device containing a PCB, battery, connectors, and mounting hardware. Before detailed CAD begins, engineers must determine how these elements will fit together, how the electronics will be installed, how the housing will be assembled and serviced, and which manufacturing process will support the expected production volume. Validation: Engineers evaluate these requirements together before finalizing the mechanical architecture and detailed CAD. Engineering Insight: Early architectural decisions can affect manufacturing, assembly, serviceability, and downstream component design. Key Takeaway: Defining these relationships early helps prevent costly redesigns later.

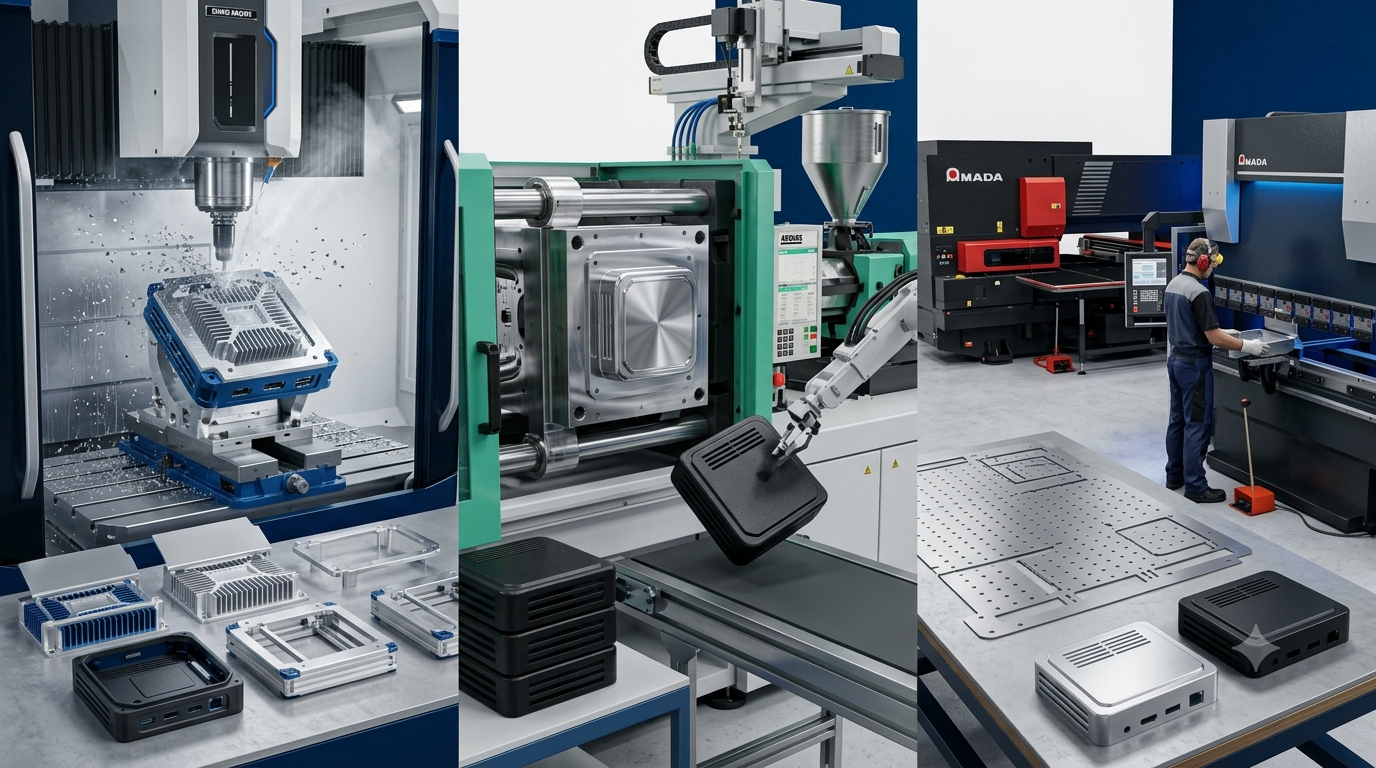

3.Design the Product Around Its Manufacturing Process

Once the architecture is established, mechanical engineering turns the requirements into physical components and assemblies. This includes 3D CAD, component design, assemblies, interfaces, material selection, tolerances and engineering drawings.

The important distinction is that mechanical design should be developed with the eventual manufacturing process in mind.

Designing for CNC Machining For CNC machining, engineers may need to consider tool access, internal corner radii, feature depth, workholding and the number of machining setups.

Manufacturing Process	Design Considerations
Injection molding	Draft, wall thickness, ribs, bosses, undercuts, parting lines, gate locations and ejection strategy
CNC machining	Tool access, internal corner radii, feature depth, workholding and number of machining setups
Sheet metal	Bend radii, bend sequence, material thickness and feature placement

At the prototype stage, keeping these elements separate may make development and design changes easier. As production requirements become clearer, however, engineers need to evaluate whether the current design is appropriate for the intended manufacturing process.

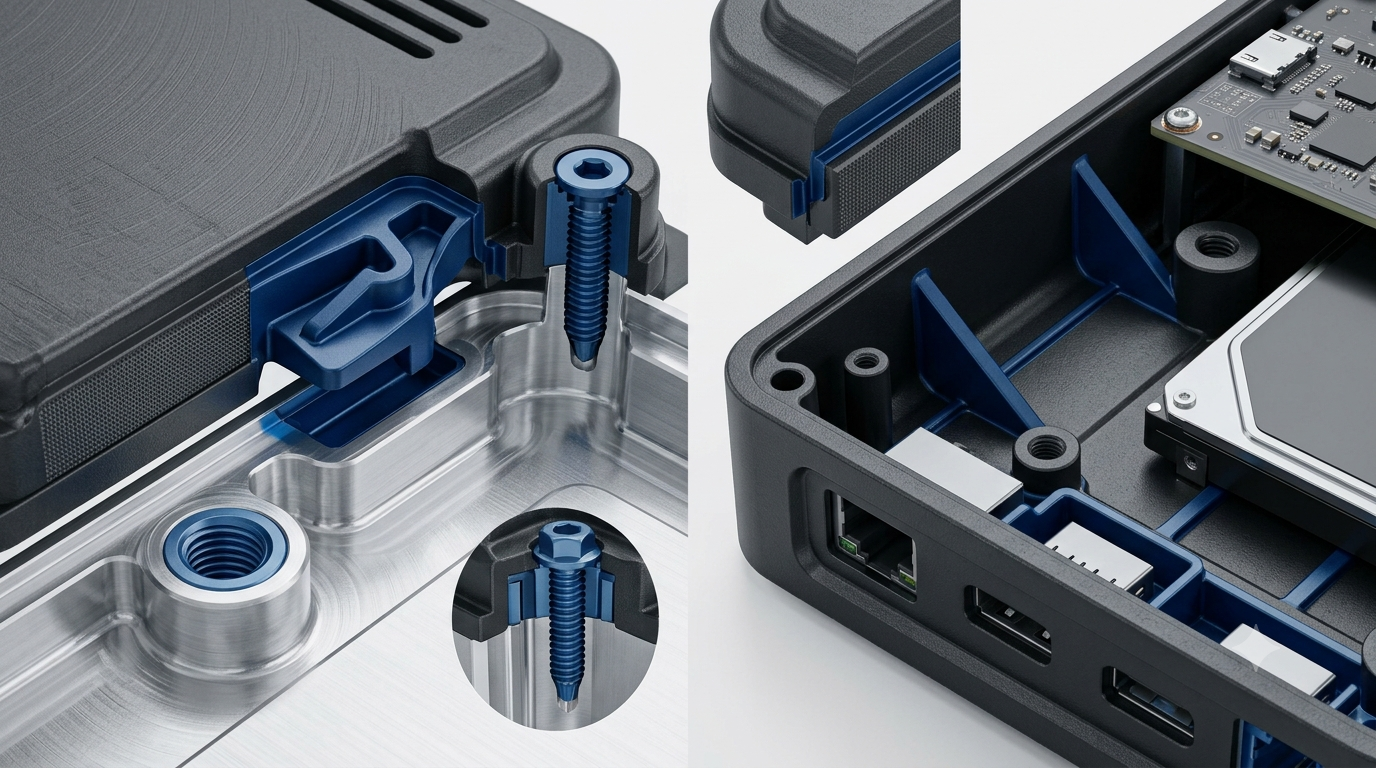

4. Small Design Decisions Can Create Major Production Problems

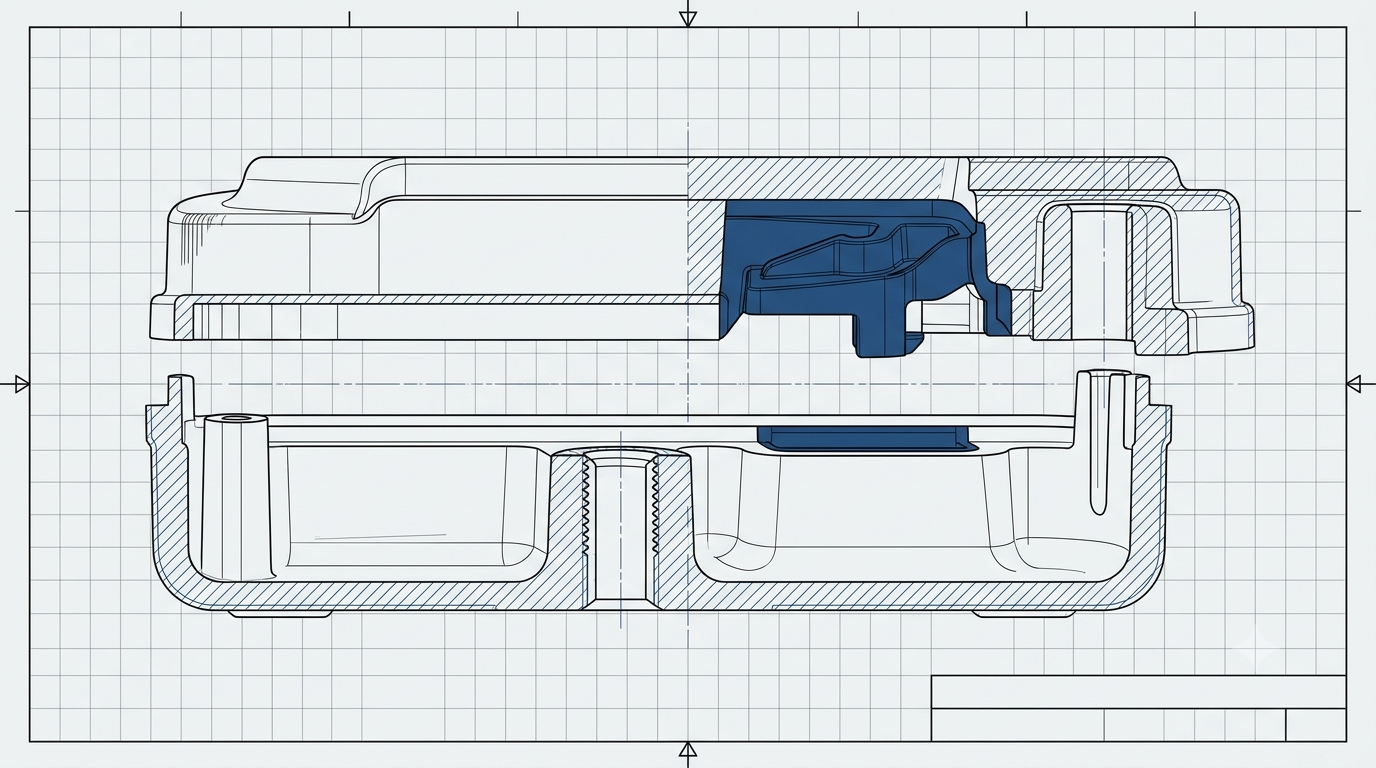

Snap-Fits A snap-fit can eliminate screws and simplify assembly, but its suitability depends on the material, geometry, deflection, assembly force and expected use. For a plastic enclosure, a snap-fit that appears functional in CAD may still require engineering evaluation for repeated assembly, stress concentration and manufacturing limitations. Engineering Scenario: When a Snap-Fit Works in CAD but Not in Practice A plastic enclosure uses snap-fits to reduce screws and simplify assembly. The feature works in CAD, but prototype testing shows that it requires excessive assembly force and may not withstand repeated opening and closing. Engineers review material behaviour, allowable deflection, stress concentration, assembly direction, operating temperature, and moulding constraints before finalizing the feature. Validation: Physical testing confirms whether the snap-fit can be assembled consistently and perform reliably under expected use. Key Insight: A feature that works geometrically in CAD may still require changes when real material behavior, manufacturing variation, and actual use are considered.

Before	Engineering Review	Production Decision
Prototype design: separate components may make early iteration easier.	Evaluate consolidation, wall thickness, draft, fastening, material and assembly.	Consolidate components only where the overall manufacturing and lifecycle impact makes sense.

The design also needs to consider the direction of assembly, allowable deflection, material behaviour over the product’s operating temperature range and whether the feature can be molded consistently.

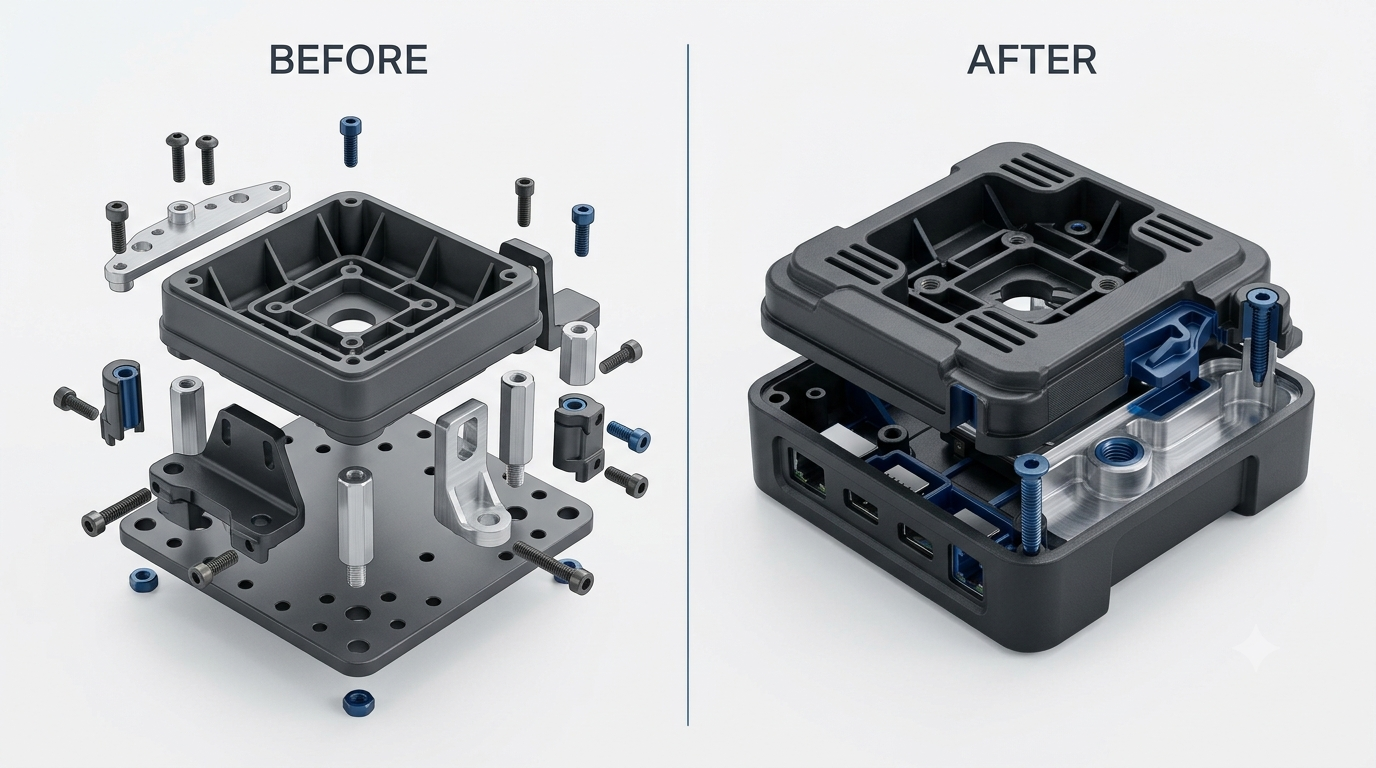

A prototype may contain several brackets, supports and fastening components because that makes early development easier. During production engineering, those components can be reviewed to determine whether certain functions can be integrated. However, consolidation also needs to be evaluated against tooling, maintenance, repairability and manufacturing requirements. A part that reduces assembly time may not be the best choice if it significantly increases tooling cost or makes a commonly replaced component difficult to service. Experienced product engineering therefore looks at the complete production and lifecycle impact rather than optimizing one metric in isolation. Good product engineering is therefore about finding the right balance rather than applying a blanket rule.

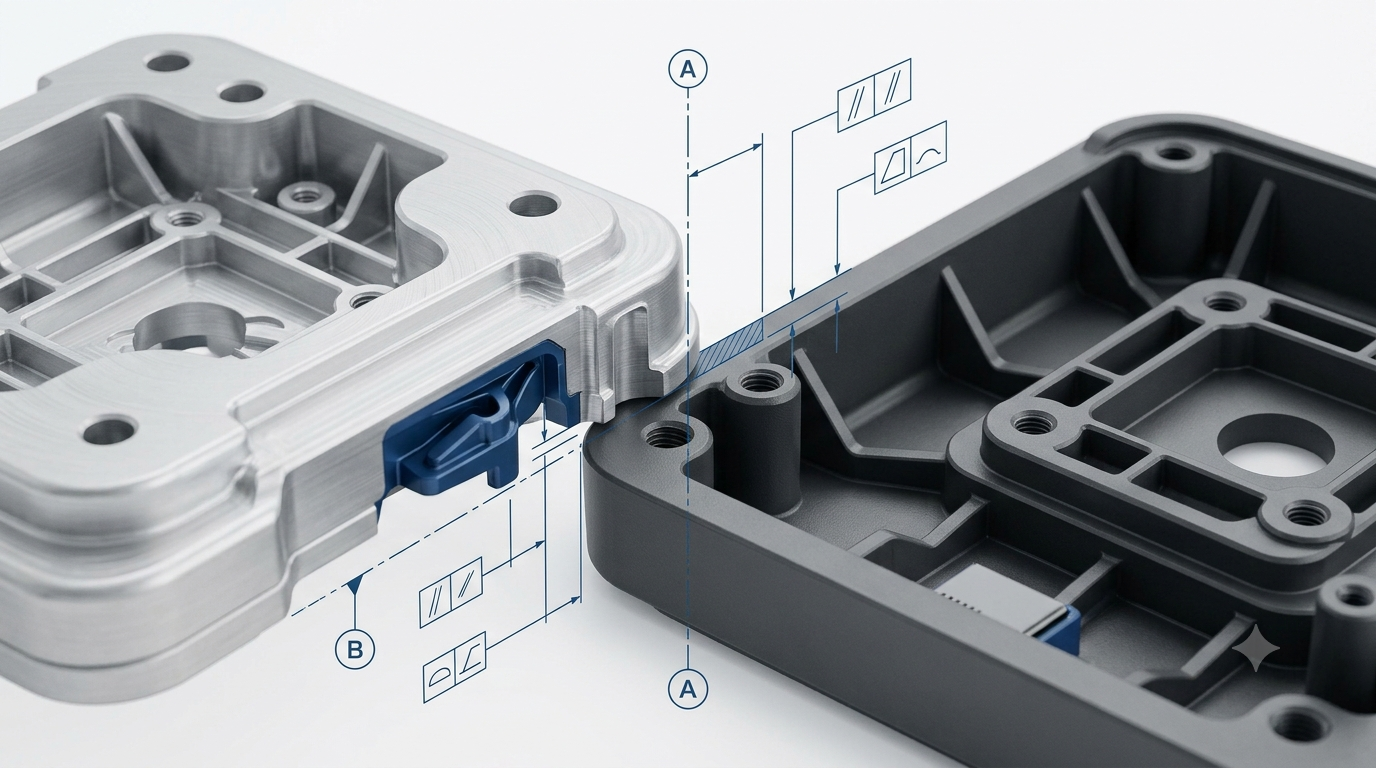

Tolerances and Datums

Tightening every tolerance may appear to improve product precision, but unnecessarily tight tolerances can increase manufacturing difficulty and cost. Conversely, tolerances that are too loose can create fit, alignment or functional problems. The appropriate tolerance depends on the function of the feature, the manufacturing process and the relationship between mating components. A critical dimension should have a reason for being critical. Engineers need to understand the functional requirement, the manufacturing capability and the inspection method before specifying a restrictive tolerance. Engineering drawings therefore need to communicate what actually matters rather than simply assigning unnecessarily restrictive values. This is also where datum strategy becomes important. If the drawing does not clearly establish how critical features are located and inspected, even a technically complete CAD model can leave room for interpretation during manufacturing and quality inspection

5. Use Prototyping to Find Problems Before Production

A prototype is often the first opportunity to evaluate how the product behaves outside the CAD environment.

Even a technically sound design can experience production delays if material availability and supplier capabilities are not considered during the design review.

• Component interference
• Assembly sequence
• Fastener accessibility
• Clearances
• Ergonomics
• Structural behaviour

Material selection

Example: When Everything Fits but the Product Is Difficult to Assemble A PCB, battery, and several connectors all fit correctly in the CAD assembly. On the first physical prototype, however, the team discovers a problem: one connector must be installed before another component can be positioned, and access becomes difficult once the housing is partially assembled. The dimensions are correct. The assembly process is not. Validation reveals the gap: a small change to the component interface or assembly sequence can make the product easier to assemble before production tooling is committed.

Engineering Insight

Digital fit confirms that components can occupy the required space. Physical validation confirms whether they can be installed, accessed, aligned, and assembled consistently.

6. Validate Performance Before Production

Not every product requires the same level of analysis. A simple mechanical component may require dimensional and functional checks, while a structural or thermally sensitive product may require more extensive engineering analysis. What Product Validation Can Include

• FEA
• Structural analysis
• Thermal analysis
• Functional testing
• Load testing
• Fit and assembly checks
• Failure analysis

Engineering Example: Reducing Weight Without Compromising Performance

Goal: Reduce component weight without compromising performance. Engineering question: Where can material be removed without negatively affecting stress, deformation, or other critical performance requirements? Validation: Use FEA and physical testing, where appropriate, to confirm that the revised design still meets the required performance criteria. Key Takeaway: The objective is not simply to make a component lighter. It is to reduce weight while maintaining the required product performance.

7. Transition From Prototype to Production Without Redesign Surprises

One of the most significant engineering transitions occurs when a prototype has demonstrated that the product works and the company begins preparing for production. The manufacturing process may change. A prototype may have been produced using 3D printing or CNC machining because those methods are practical at low volumes. A production product may require injection molding, die casting, sheet metal fabrication or another process depending on volume, material, geometry and commercial requirements.

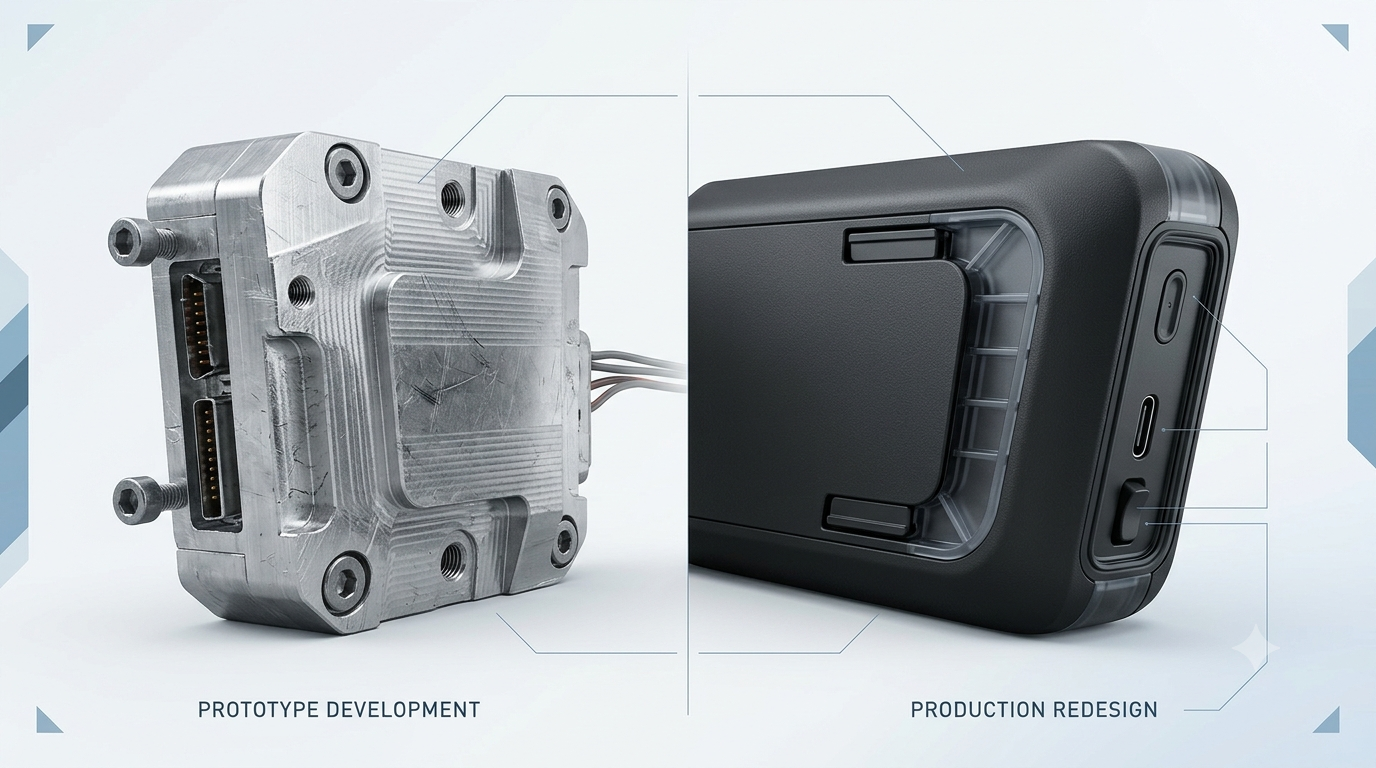

Example: CNC Prototype to Injection-Molded Product

A startup successfully prototypes an enclosure using CNC machining. As production volumes grow, injection molding becomes more practical. Now the design must account for wall thickness, draft angles, ribs, bosses, parting lines, and ejection. Engineers must also check for difficult tooling actions and ensure critical cosmetic and functional surfaces can be produced consistently. This distinction is one of the reasons prototype design and production design require different engineering considerations. Moving From Prototype to Production? CTA BOX If your hardware startup has a working prototype but needs help with mechanical design, engineering validation, manufacturing considerations, or production readiness, Engon can support the next stage of development. See how Engon supports hardware startups from product development through production readiness →

8. Make the Engineering Package Manufacturing-Ready

As the product approaches production, engineering information needs to be complete, consistent, and clear enough for manufacturers and suppliers to work from. What a Manufacturing-Ready Package Should Include · Final CAD models · Engineering drawings · Bill of materials (BOM) · Material specifications · Critical dimensions · Tolerances · Manufacturing requirements · Assembly information · Revision history · Supplier documentation · Engineering change records The quality of this information directly affects how reliably the design can move from the engineering environment into manufacturing. A manufacturer should not have to interpret design intent from an incomplete CAD model. The manufacturing-ready package should provide enough information for suppliers to quote, manufacture, inspect, and assemble the product without relying on undocumented assumptions. Questions to Ask Before Release · Are the critical dimensions genuinely function-critical? · Are the specified tolerances achievable with the selected manufacturing process? · Can critical features be inspected consistently? · Are material and finish requirements clearly specified? · Is the assembly sequence practical? · Are supplier and manufacturing assumptions documented? · Can the design be revised without creating unnecessary downstream confusion?

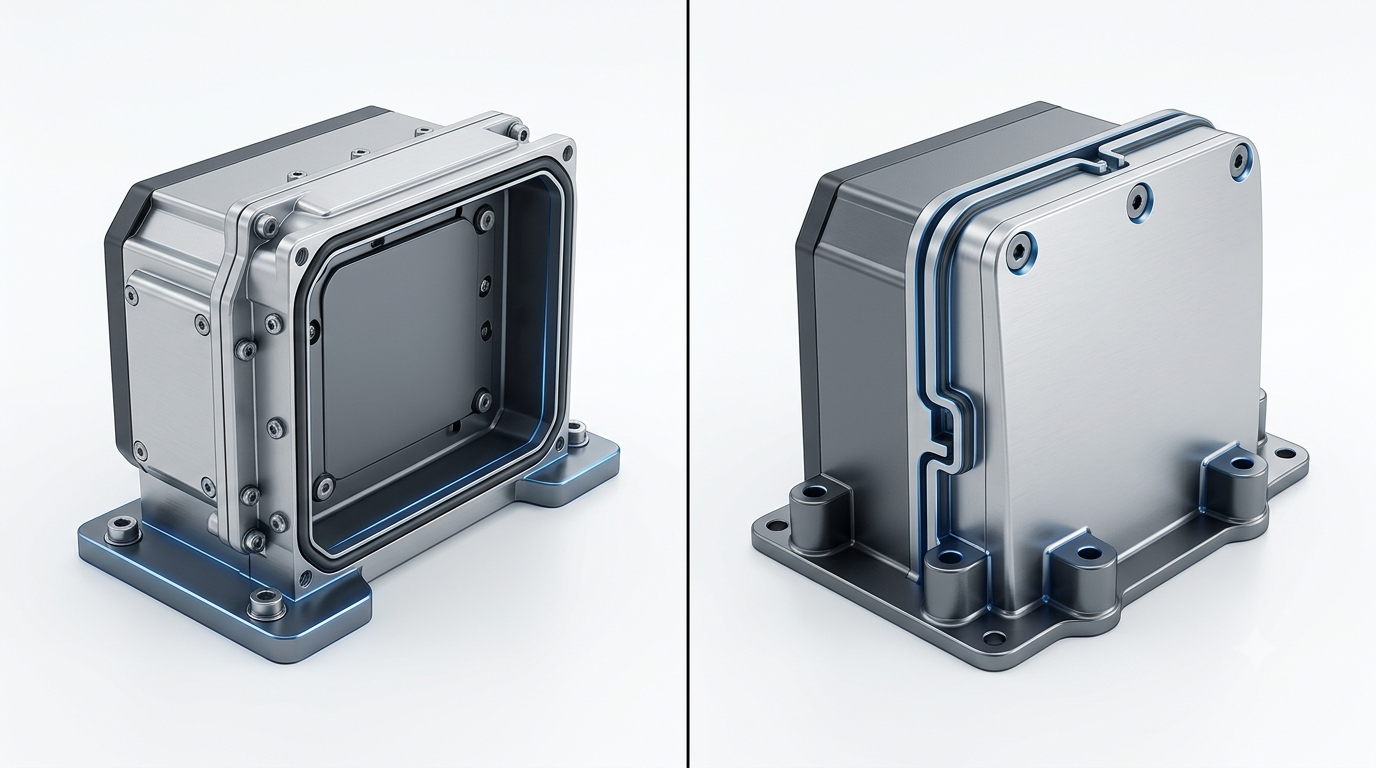

9. Manage Engineering Changes Before They Become Expensive

Early design changes are a normal part of product development. A change to the enclosure during concept development may affect only a few CAD files. The same change after prototypes have been produced can affect physical parts. After tooling has been commissioned, it can affect molds, production schedules and supplier coordination. Once production has started, the change may also involve inventory, quality documentation and manufacturing processes. This is why experienced product engineering teams try to identify high-impact decisions early. The goal is not to eliminate design changes. That is unrealistic in hardware development. The goal is to make the right changes at the right stage. A useful engineering mindset is to ask not only “Can we change this?” but also “What else does this change affect?” A seemingly small enclosure revision can affect PCB fit, sealing, fastener locations, tooling, packaging, assembly instructions and inspection requirements. Understanding those dependencies is part of managing product risk.

Engineering Mindset Don’t ask only “Can we change this?” Ask “What else does this change affect?”

Key Takeaway The earlier the change, the fewer downstream dependencies it is likely to affect.

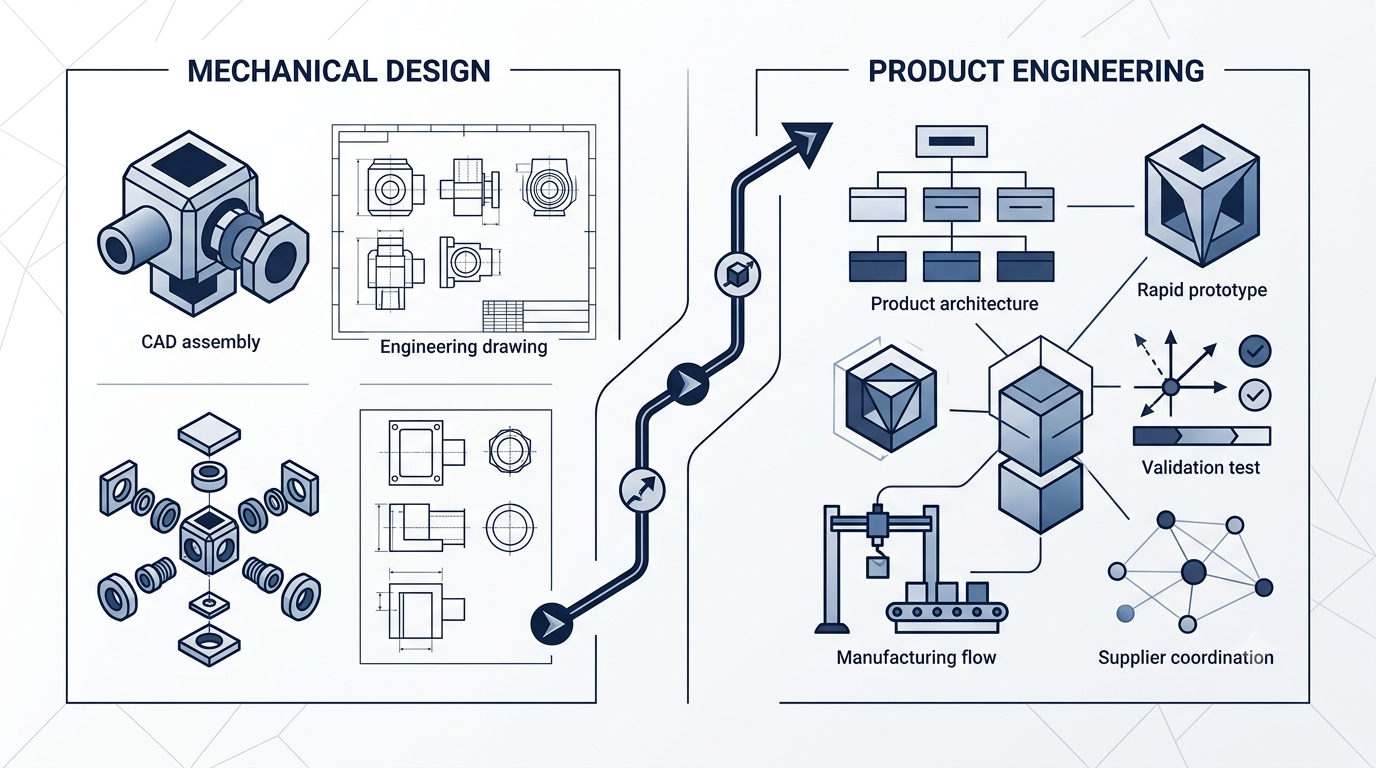

10. Mechanical Design vs. Product Engineering: What’s the Difference?

Mechanical Design	Product Engineering
Develops components and assemblies	Connects product requirements to production
Creates CAD geometry	Considers architecture and interfaces
Produces engineering drawings	Considers manufacturing and assembly
Defines mechanical features	Evaluates materials and tolerances
Develops physical design	Supports prototyping and validation
Documents the design	Supports manufacturing readiness

Mechanical design focuses on defining the product’s physical components, geometry, and mechanical details. Product engineering takes a broader view, considering whether the design works as part of the complete product and can progress successfully through prototyping, validation, manufacturing, and production. For startups with small internal engineering teams, this broader capability can be particularly valuable because product development often crosses multiple disciplines. The distinction becomes especially important as a product moves between development stages. A mechanical designer may focus on component geometry, while product engineering also considers how that geometry affects electronics integration, assembly, validation, manufacturing, sourcing, and future engineering changes.

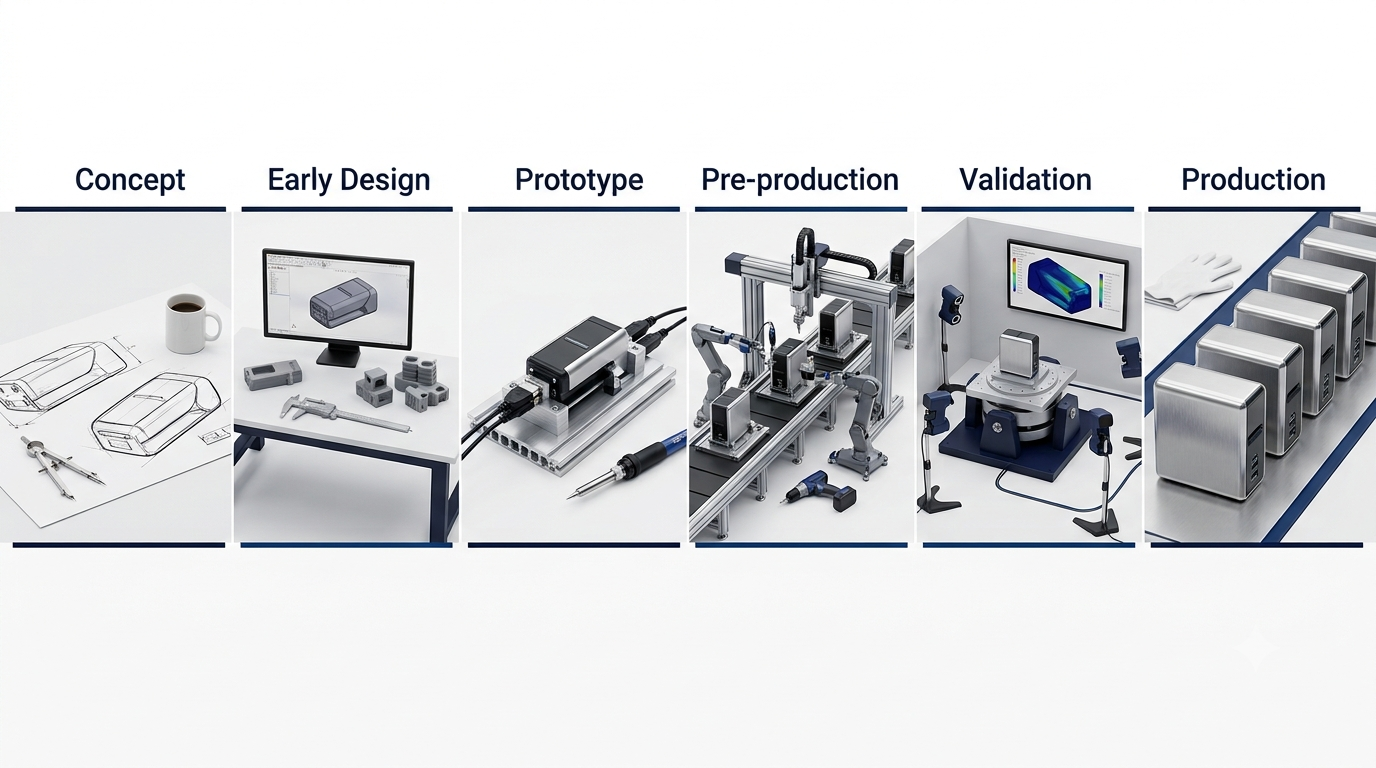

11. What Engineering Support Does Your Product Need?

Development Stage	Typical Engineering Focus
Concept	Feasibility, architecture and requirements
Early Design	Mechanical design, CAD and component integration
Prototype	Design iteration, fit and functional evaluation
Pre-Production	DFM, DFA, tolerances and manufacturing preparation
Validation	Engineering analysis and physical testing
Production	Documentation, supplier coordination and engineering changes

Not every product requires every activity at the same depth. A startup developing a relatively simple mechanical assembly may need limited analysis but significant manufacturing support. A product containing structural, thermal or safety-critical components may require considerably more validation. The appropriate engineering scope should therefore be determined by the product’s requirements and risks rather than by a standard list of services. This risk-based approach is important because engineering effort should be concentrated where failure would have the greatest technical, commercial or safety consequence.

12. How to Choose a Hardware Product Engineering Partner

Look Beyond CAD Capability

The right engineering partner should be able to work with the product at its current stage while understanding what comes next. For an early concept, that may mean helping establish the mechanical architecture. For an existing CAD model, it may mean identifying manufacturing or assembly issues.

Evaluate Prototype-to-Production Experience

For a working prototype, it may involve redesigning components for a production process. For a product approaching manufacturing, it may involve final drawings, BOM development, supplier coordination and engineering change management.

Look for Connected Engineering Support

The important capability is not simply the ability to produce CAD. It is the ability to connect engineering decisions across the product-development cycle. A capable engineering partner should also be able to explain why a particular design decision is appropriate for the intended manufacturing process—not simply confirm that the geometry can be modelled. That distinction is often what separates CAD execution from genuine product engineering.

Buyer Checklist Look beyond CAD capability • Evaluate prototype-to-production experience • Look for connected engineering support • Ask how design decisions are tied to the intended manufacturing process.

From Concept to a Manufacturing-Ready Product

The path from a product idea to production is a sequence of connected engineering decisions. The concept establishes the product architecture. Mechanical design turns that architecture into physical components. Prototyping tests the design in the real world. Validation provides evidence that critical requirements are being met. Manufacturing engineering adapts the design to the selected production process. Engineering documentation communicates the final requirements to suppliers and manufacturers. When these stages are treated as separate activities, problems can emerge at the interfaces between them. When they are treated as one connected product-development process, decisions can be made with a clearer understanding of their downstream consequences. That is ultimately what experienced product engineering brings to hardware development: the ability to anticipate how today’s design decisions will affect tomorrow’s manufacturing, assembly, quality and cost. For hardware companies, that is the real value of product engineering: not simply creating a design, but developing a product that is ready to move from engineering into manufacturing with fewer surprises.
